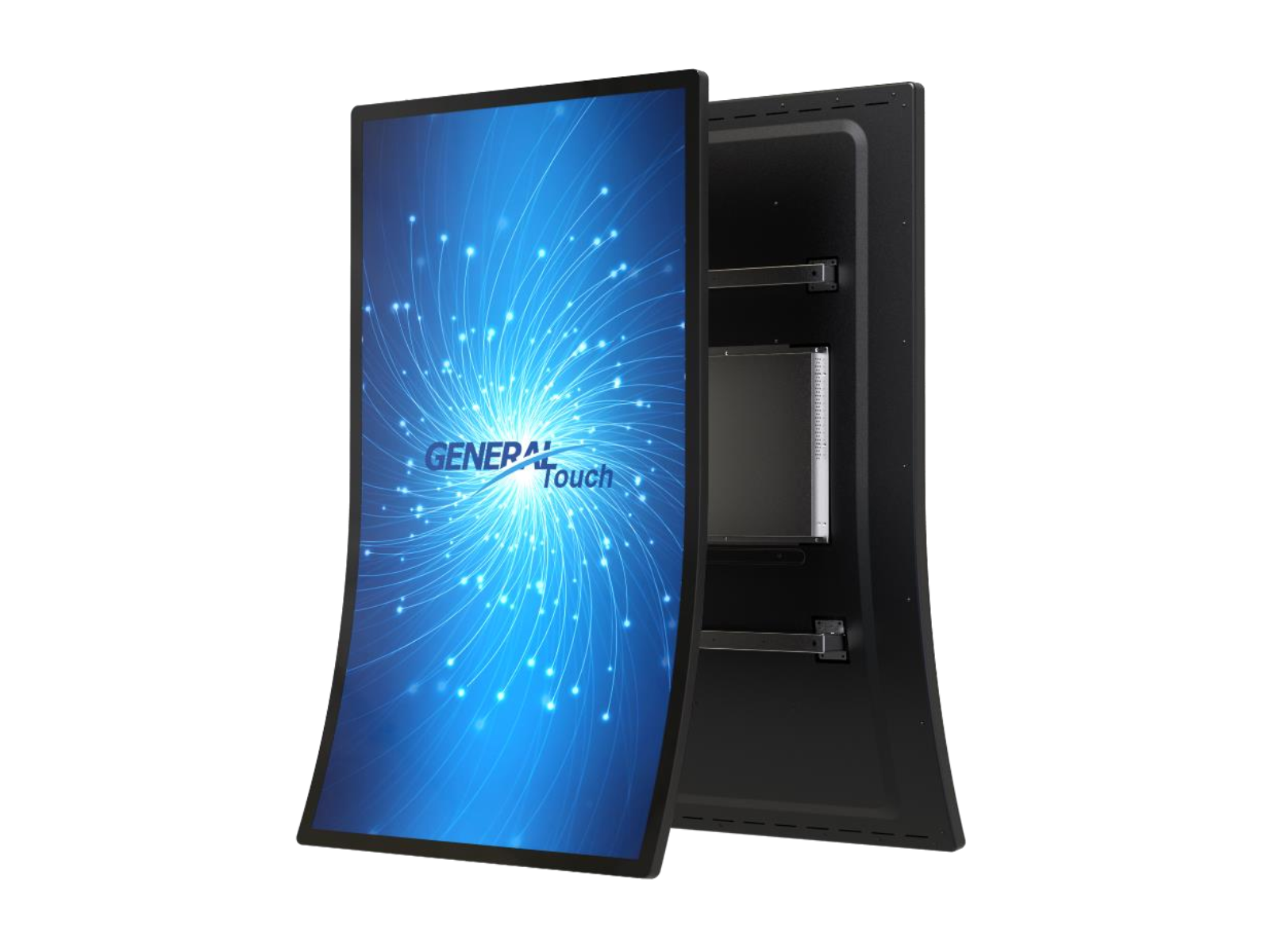

OTJ555 55″ 4K J Curved Non-LED
|
Product Name |
55 Inch Curved Touchmonitor |
|
Model |
OTJ555 |
|
LCD Panel Parameters |
|
|
Display Technology |
Active Matrix TFT-LCD with LED Backlight |
|
Aspect Ratio |
16:9 |
|
Active Area (W x H) |
1209.6mm × 680.4mm |
|
Native Resolution |
3840 × 2160 @ 60Hz |
|
Response Time (Typ.) |
8ms |
|
Display Colors |
1.07B |
|
Luminance (Typ.) |
550nits |
|
Contrast Ratio (Typ.) |
4000:1 |
|
Viewing Angle (Typ.) |
Horizontal (left/right): CR≥10 89°/89° |
|
Vertical (up/down): CR≥10 89°/89° |
|
|
Touch Screen Parameters |
|
|
Touch Technology |
PCAP |
|
Cover Glass Treatment |
Strengthened |
|
Impact Resistance Level |
IK07 |
|
Thickness (Total) |
4.5mm |
|
Light Transmission |
≥83% |
|
Response Time (Typ.) |
10 ms |
|
Touch Screen Interface |
USB |
|
Touch Point |
10 |
|
Overall Parameters |
|
|
Case/Bezel Color |
Black |
|
Mounting Options |
VESA: 600mm × 400mm |
|
Outline Dimensions (W×H×D) |
732.0mm × 1261.8mm × 196.0mm, curvature radius 1492mm |
|
Power Supply |
Input Voltage Range: +24 VDC ± 5%, 4 PIN plug or 6 PIN mating Molex 3901-2060 |
|
On Screen Display (OSD) |
Control (External): Power, Auto, Up, Down, Menu |
|
Power Consumption (Max.) |
150W |
|
Operating Altitude |
≤ 3000m |
|
Temperature Range |
Operating: 0℃ to 40℃, storage: -20℃ to 60℃ |
|
Humidity (Non Condensing) |
Operating: 20% to 80%, storage: 10% to 90% |
|
I/O |
HDMI, HDMI, DP, USB (Type B） |
|
Accessories |
Optional |
|
Carton Box Dimensions |
TBD mm (L) × TBD mm (W) × TBD mm (H), 1 unit in one carton |
|
Weight |
Net: TBD kg, Gross: TBD kg |
|
MTBF |
50,000 hours demonstrated |
|
Agency Approvals |
CE, FCC, UKCA |
|
Warranty |
1 year |
|
Ordering Information |
||
|
Model |
Part Number |
Description |
|
OTJ555-RC5000-UD5400-2.0 |
10202020072R |
55″ “J type”, 1500R, UHD, 16:9, 550nits, PCAP, USB, HDMI/HDMI/DP |
|
Drawings and Spec Sheet |
||
|
Spec Sheet |
||
