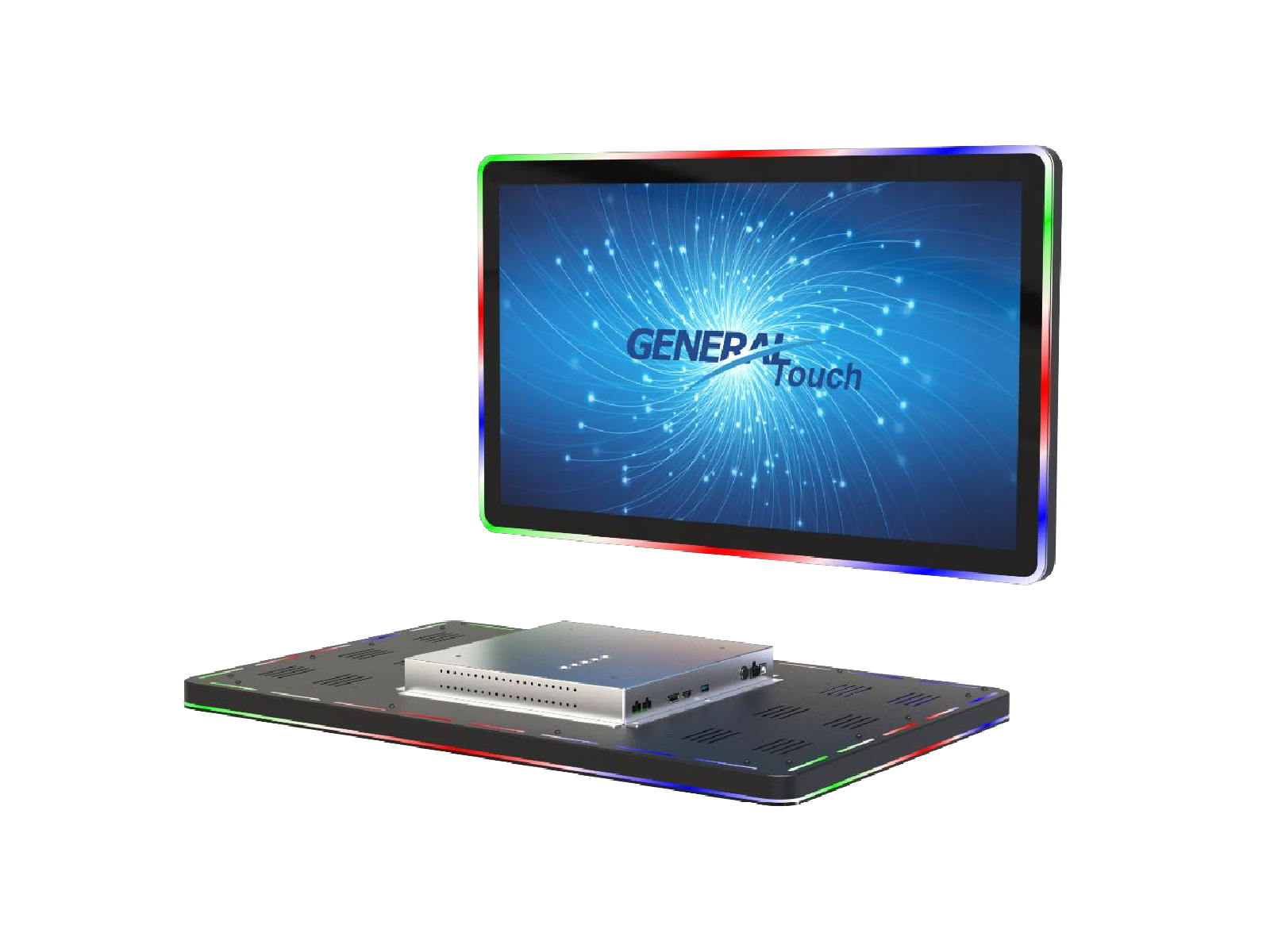

OTL327 32″ LED-edge
|
Product Name |
32 Inch LED-Framed Touchmonitor |
|
Model |
OTL327 |
|
LCD Panel Parameters |
|
|
Display Technology |
Active Matrix TFT-LCD with LED Backlight |
|
Aspect Ratio |
16:9 |
|
Active Area (W x H) |
698.40mm × 392.85mm |
|
Native Resolution |
1920 × 1080 @ 60Hz |
|
Response Time (Typ.) |
8ms |
|
Display Colors |
16.7M |
|
Luminance (Typ.) |
400nits |
|
Contrast Ratio (Typ.) |
1200:1 |
|
Viewing Angle (Typ.) |
Horizontal (left/right): CR≥10 89°/89° |
|
Vertical (up/down): CR≥10 89°/89° |
|
|
Touch Screen Parameters |
|
|
Touch Technology |
PCAP |
|
Cover Glass Treatment |
Strengthened |
|
Cover Glass Surface Treatment |
Optional: Anti-glare |
|
Impact Resistance Level |
IK07 |
|
Thickness (Total) |
4.3mm |
|
Light Transmission |
≥83% |
|
Response Time (Typ.) |
10 ms |
|
Touch Screen Interface |
USB |
|
Touch Point |
10 |
|
Overall Parameters |
|
|
Case/Bezel Color |
Black |
|
Mounting Options |
VESA: 200mm × 200mm |
|
Outline Dimensions (W×H×D) |
765.9mm × 466.5mm × 64.6mm |
|
Power Supply |
Input Voltage Range: Monitor: +24 VDC ± 5%, 4 PIN plug or 6 PIN mating Molex 3901-2060 RGB LED Lights: +12VDC ± 5%, mating Molex 43025-0600 Optional LED controller (External): +12VDC ± 5%, Coaxial power jack 2.5mm pin outer diameter |
|
On Screen Display (OSD) |
Control (Back): Power, Auto, Up, Down, Menu |
|
Power Consumption (Max.) |
60W (Monitor without RGB LED Lights), 30W (RGB LED Lights) |
|
Operating Altitude |
≤ 3000m |
|
Temperature Range |
Operating: 0℃ to 40℃, storage: -20℃ to 60℃ |
|
Humidity (Non Condensing) |
Operating: 20% to 80%, storage: 10% to 90% |
|
I/O |
VGA, DVI, DP, USB (Type B） |
|
Accessories |
Optional |
|
Carton Box Dimensions |
905mm (L) × 215mm (W) × 580mm (H), 1 unit in one carton |
|
Weight |
Net: 15kg, Gross: 20kg |
|
MTBF |
50,000 hours demonstrated |
|
LED Lights Color |
Multicolor |
|
LED Lights Location |
4 LED lights bar (Front, Edge & Back) |
|
LED Controller (External) |
Optional |
|
Agency Approvals |
CE, FCC, UKCA |
|
Warranty |
3 years |
|
Ordering Information |
||
|
Model |
Part Number |
Description |
|
OTL327-RC5000-UP4F50-2.0 |
10202010766R |
32″ , FHD, 16:9, 400nits, PCAP, USB, VGA/DVI/DP, LED lights Location front, edge & back |
|
